20mm-40mm B2 B3 Hot Rolling Steel Ball Forged Ball Forging Grinding Ball For Ball Mill
1. Ball mill grinding media Application
Hot rolling balls are used in ball mills, mainly in mines, cement plants, power plants and so on.
2. Ball mill grinding media Classification
According to the different chemical elements , hot rolling balls can be divided into C45,60Mn,B2 and B3. At present, the above four materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.
① 45#
② 60Mn
③ B2
④ B3
3. Dragon Balls Main Product
Forged grinding ball
Hot Rolling Ball
Cast Iron Ball
Grinding Cylpebs
Grinding Rods
Liners
4. Ball mill grinding media Different Name in Different Place
Hot Rolling Ball
Rolled Ball
Forged Ball
Grinding Media Ball
Rolling Ball
5. Ball mill grinding media Manufacturing process
Hot rolling ball is making by hot rolling machine ,water quenching,double-layer insulating barrel and so on a series process.
6. Ball mill grinding media Detail Specifications
① Chemical Composition
| Material | Chemical Composition |
| C45 | C:0.42-0.5,Si:0.17-0.37,Mn:0.5-0.8,Cr:≤0.25, P:≤0.035, S:≤0.035, Ni:≤0.25, Cu:≤0.25 |
| 60Mn | C:0.55-0.65, Si:0.17-0.37, Mn:0.7-1.0, Cr:≤0.25, P:<0.04, S:<0.04, Ni:≤0.3, Cu:≤0.25 |
| B2 | C:0.72-0.85, Si:0.17-0.37, Mn:0.7-1.0, Cr:0.4-0.6, P:≤0.025, S:≤0.025, Ni:≤0.02, Cu:≤0.02 |
| B3 | C:0.58-0.66, Si:1.3-1.9, Mn:0.65-0.8, Cr:0.7-0.9, P:≤0.025, S:≤0.025, Ni:≤0.02, Cu:≤0.02 |
| Material | Chemical Composition |
| C | Si | Mn | Cr | P | S | Ni | Cu |
| C45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 |
| 60Mn | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | ≤0.25 | <0.04 | <0.04 | ≤0.3 | ≤0.25 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | 0.4-0.6 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | 0.7-0.9 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
② Hardness
| Size | C45 | 60Mn | B2 | B3 |
| 20mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 30mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 40mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 50mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 60mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 70mm | 53-56 | 58-62 | 60-64 | 61-63 |
| 80mm | 53-56 | 58-62 | 59-63 | 60-65 |
| 90mm | 50-55 | 58-62 | 57-61 | 60-65 |
| 100mm | 48-52 | 57-61 | 56-60 | 60-65 |
| 110mm | 48-52 | 57-61 | 55-60 | 58-64 |
| 120mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 130mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 140mm | 48-42 | 57-61 | 55-60 | 56-63 |
| 150mm | 48-52 | 57-61 | 55-60 | 56-63 |
③ Weight
| Size(mm) | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
| Weight(kg) | 0.033 | 0.111 | 0.261 | 0.512 | 0.883 | 1.402 | 2.092 | 2.98 | 1.087 | 5.44 | 7.062 | 9.008 | 11.25 | 13.83 |
④ Dragon balls specifications
| Diameter (mm) | Diameter Tolerance (mm) | Approx Weight of per ball(kg) | Average numbers per ton |
| 20 | ＋1,－0.5 | 0.033 | 30303 |
| 30 | ＋2,－1 | 0.11 | 9090 |
| 40 | ＋2,－1 | 0.261 | 3831 |
| 50 | ＋2,－1 | 0.512 | 1961 |
| 60 | ＋2,－1 | 0.883 | 1132 |
| 70 | ＋3,－1.5 | 1.402 | 713 |
| 80 | ＋3,－1.5 | 2.092 | 478 |
| 90 | ＋3,－1.5 | 2.98 | 335 |
| 100 | ＋3,－1.5 | 1.087 | 244 |
| 110 | ＋3,－1.5 | 5.44 | 183 |
| 120 | ＋3,－1.5 | 7.062 | 141 |
7. Ball mill grinding media Quality Control
① Factory test
Hot rolling balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.
② The third party test
According to the customer different demand,hot rolling balls can be tested by any third party.

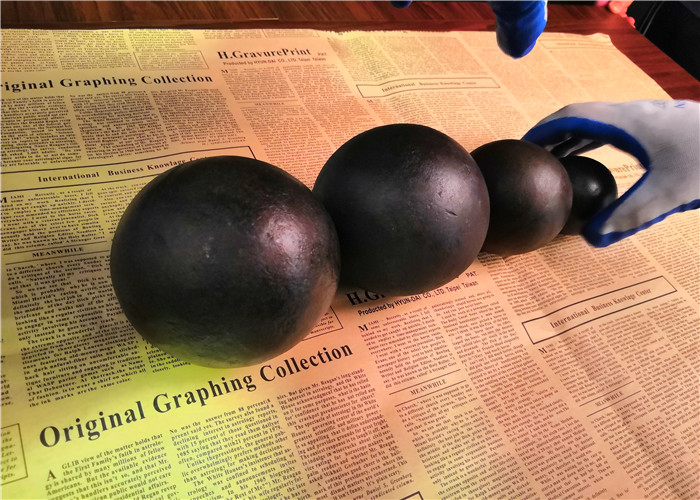

Ball mill grinding media Balls
Factory Ball mill grinding media balls stock
